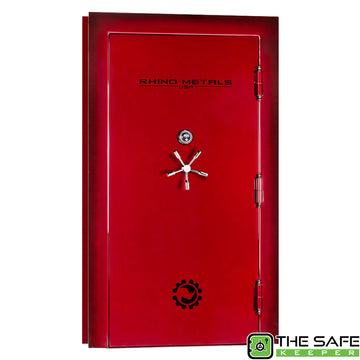

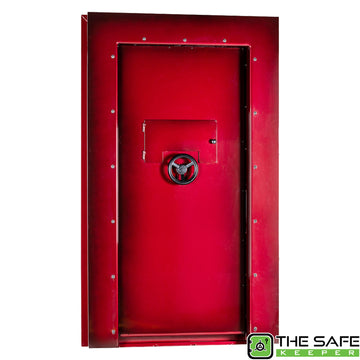

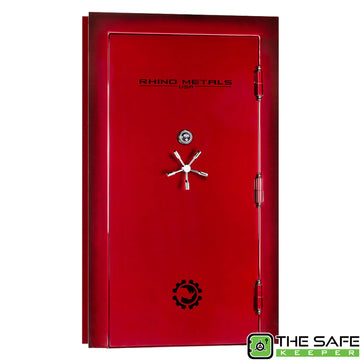

More about Rhino Vault Door Series
The Rhino Vault Door Series is designed to provide maximum security and fire resistance for your home or business. These vault doors feature a ball bearing drill plate, a tempered glass relocker, and a three-sided doorbolt system that can withstand extreme temperatures and attacks. With a high gloss automotive finish and a 5-spoke vault handle, the Rhino steel doors combines style and durability.
- Lock:U.L. Listed Manual Lock with Day-Lock
- Bolts:1.25" Diameter Doorbolts, 3-Sided Protection
- • Fire Resistant Design with Dual Intumescent Expanding Fire Seal
- • Ball Bearing Drill Plate & Spring-Loaded Relocker
- • Tempered Glass Relocker with Remote Spring-Loaded Relocker Deadbolts the System
- • Internal Release & Panic Room Lock-In Mechanism
- • Standard & Reverse Opening Capabilities
- • Clamshell Design Simplifies Installation & is Designed to Fit a Variety of Wall Types, 8"+ Thick
- • Decorative Finials Included with Gloss Finishes
- • Customizable Color Options
Additional Design Specification For Out-Swing Only
- Fire Protection:120 Minute at 1400°F (Fire Protection can Vary based on Installation & Room Construction)
- Door:5.39" Thick Door with Full Coverage .25" Steel Face
- Frame:.25" Thick Steel Outer Door Frame
- • For Additional Security, the Out-Swing can be Installed Using Expansion Anchors or Lag Bolts (Not Included)
Additional Design Specification For In-Swing Only
- Fire Protection:90 Minute at 1400°F (Fire Protection can Vary based on Installation & Room Construction)
- Door:5.79" Thick Door with Full Coverage .25" Steel Core
- Frame:10 GA Thick Steel Outer Door Frame
- Construction:12 Gauge Formed Steel Construction
Rhino Vault Doors: Base Features and Comparison Chart
Rhino Vault Door Series are the ultimate choice for creating a secure and stylish vault room. They are handcrafted in the USA, using high-quality steel and fire-resistant materials. Rhino Metals vault doors come in various sizes, designs, and ratings, to suit your needs and preferences. Rhino steel doors prices range from $6,508 to $9,818 for the base configuration.
Out-Swing Models
| Door Model |
Weight (lbs) (approx.) |
Min Rough Door Opening (H"xW") |
Max Rough Door Opening (Clamshell Installation)(H"xW") |
Max Rough Door Opening (Concrete Anchor Installation)(H"xW") |
Doorbolts |
|---|---|---|---|---|---|
| VD8030 | 900 | 80.25x30.5 | 83x36 | 81x31.25 | 16 |
| VD8035 | 1030 | 80.25x35.5 | 83x41 | 81x36.25 | 16 |
| VD8040 | 1100 | 80.25x40.5 | 83x46 | 81x41.25 | 17 |
| VD8045 | 1180 | 80.25x45.5 | 83x51 | 81x46.25 | 17 |

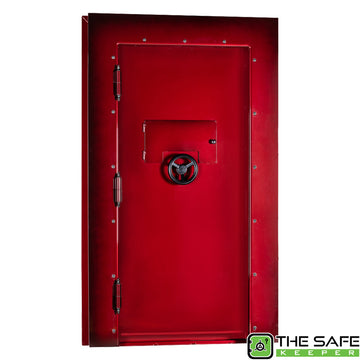

In-Swing Models
| Door Model |
Weight (lbs) (approx.) |
Min Rough Door Opening (H"xW") |
Max Rough Door Opening (H"xW") |
Doorbolts |
|---|---|---|---|---|
| VD8240 | 755 | 82.75x39.5 | 83x41 | 21 |
